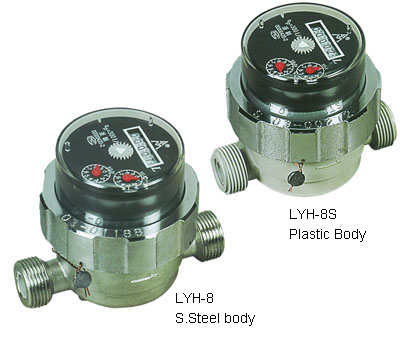

LYH-8 / LYH-8S Drinking Water Measuring Instrument





Application:
   Measuring the volume of drinking water passing through the pipeline.

Feature:
   Adopt volumetric rotary piston principle of measurement. High sensitivity enables the measurement
   even at a low flow rate of 2 L/H. Vacuum Sealed register to keep a clear reading in long time service.
   Mechanical parts use of high quality materials to ensure a long life span. Main body use of stainless
   steel casting or plastic with a nice looking and high sturdiness.

Working Condition:
   Water temperature:≤40℃
   Working pressure:≤0.6MPa

Compliance With Standard:

Q/NAM01

Indicating Error:
   a) In the lower zone from Qmin inclusive up to but excluding Qt is ?%
 b) In the upper zone from Qt inclusive up to and including Qs is ?%

Main Technical Data:
Type Meter
Size
mm
qs
Max
Flow
qp
Nominal
Flow
qt
Transitional
Flow
qmin
Min
Flow
Staring
Flow
Min
Reading
Max
Reading
l/h L
LYH-8
LYH-8S
8 600 300 22.5 12.5 ≤2 0.01 999999

Dimensions And Weight:
Type Meter Size Length (L) Width (B) Height (H) Connecting
Thread
Weight
mm D kg
LYH-8 8 110 82 91 G 3/4 B 0.89
LYH-8S 8 100 82 91 G 3/4 B 0.39

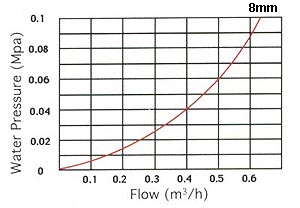

 Head Loss Curve:

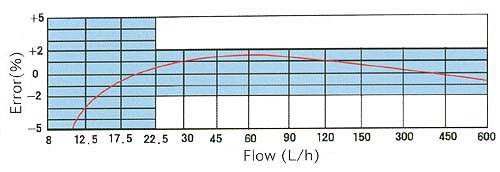

Flow Error Curve:
