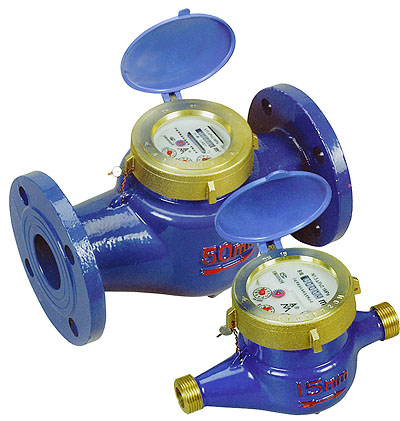

LXSY-15E~50E  Rotary Vane Wheel Multi-jet Liquid-sealed Cold

   Water Meter





Application:
   This range of water meter is used to measure the total quantity of cold potable water which
   consumed in household or a resident unit, passing through the pipeline.

Feature:
   Multi-jet, Register is sealed in the capsule with special liquid keep a clear presentation in a long
   term service. Selected high quality materials. Steady & reliable. Measuring accuracy conform to
   ISO 4064 Class B


Working Condition:
   Water temperature:≤40℃
   Working pressure:≤1MPa

Compliance With Standard:

ISO 4064 Class B

Indicating Error:
   a) In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
 b) In the upper zone from Qt inclusive up to and including Qs is ±2%

Main Technical Data:
Type Meter Size

(mm)

Class qs
Max
Flow
qp
Nominal
Flow
qt
Transitional
Flow
qmin
Min
Flow
Min Reading  Max. Reading
m3/h l/h m3
LXSY-15E 15 A 3 1.5 150 60 0.0001 99999
B 120 30
LXSY-20E 20 A 5 2.5 250 100 0.0001 99999
B 200 50
LXSY-25E 25 A 7 3.5 350 140 0.0001 99999
B 280 70
LXSY-32E 32 A 12 6 600 240 0.0001 99999
B 480 120
LXSY-40E 40 A 20 10 1000 400 0.001 99999
B 800 200
LXSY-50E 50 A 30 15 4500 1200 0.001 99999
B 3000 450

Dimensions And Weight:
Meter Size

mm

Length

Width

Height

Connecting thread

Weight

kg

mm D d
15 165 99.5 106 G 3/4B R1/2 1.4
20 195 99.5 106 G 1 B R3/4 1.7
25 225 104 112 G 1-1/4 B R1 2.4
32 230 104 112 G 1-1/2 B R1-1/4 2.5
40 245 128 156 G 2 B R1-1/2 4.5
50 280 128 181 Connecting Flange
D1=160 D2=125 4-M16
12

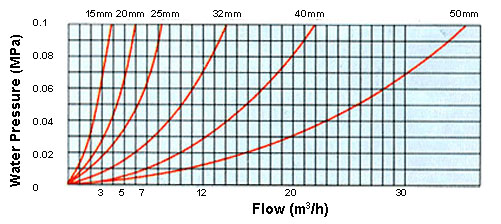

Head Loss Curve:






Flow Error Curve:
