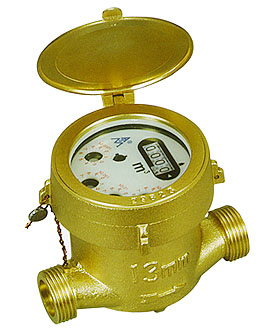

LXSY-13D  Rotary Vane Wheel Single-jet Liquid-sealed Cold Water

   Meter





Application:
   This range of water meter is used to measure the total quantity of cold potable water which
   consumed in household or a resident unit, passing through the pipeline.

Feature:
   Register is sealed in the capsule with special liquid keep a clear presentation in a long term service.
   Single-jet, Sensitive & Reliable. Measuring accuracy conform to ISO 4064 Class B.


Working Condition:
   Water temperature:≤40℃
   Working pressure:≤1MPa

Compliance With Standard:

ISO 4064 Class B

Indicating Error:
   a) In the lower zone from Qmin inclusive up to but excluding Qt is ?%
 b) In the upper zone from Qt inclusive up to and including Qs is ?%

Main Technical Data:
Type Meter Size

(mm)

Class qs
Max
Flow
qp
Nominal
Flow
qt
Transitional
Flow
qmin
Min
Flow
Min Reading  Max. Reading
m3/h l/h m3
LXSY-13D 13 A 3 1.5 150 60 0.0001 9999
B 120 30

Dimensions And Weight:
Meter Size

mm

Length

Width

Height

Connecting thread

Weight

kg

mm D d
13 100 87 89 G 3/4B R1/2 0.8

Head Loss Curve:


Flow Error Curve:
