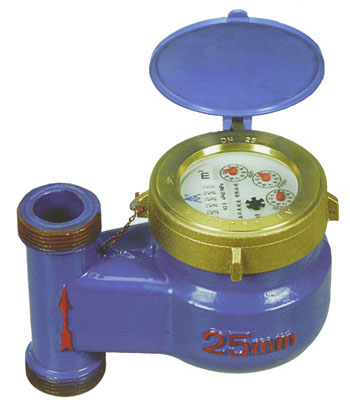

LXSL-15E~25E  Rotary Vane Wheel Multi-jet Wet-Dial Vertical

   Type Cold Water Meter





Application:
   This range of water meter is used to measure the total quantity of cold potable water which
   consumed in household or a resident unit, passing through the pipeline.

Feature:
   Wet-dial, Multi-jet, Sensitive & Reliable. Measuring accuracy conform to ISO 4064 Class B. Installed
   in vertical pipeline and is suitable for household as branch meter.


Working Condition:
   Water temperature:≤40℃
   Working pressure:≤1MPa

Compliance With Standard:

ISO 4064 Class B

Indicating Error:
   a) In the lower zone from Qmin inclusive up to but excluding Qt is ?%
 b) In the upper zone from Qt inclusive up to and including Qs is ?%

Main Technical Data:
Type Meter Size

(mm)

Class qs
Max
Flow
qp
Nominal
Flow
qt
Transitional
Flow
qmin
Min
Flow
Min Reading  Max. Reading
m3/h l/h m3
LXSL-15E 15 A 3 1.5 150 60 0.0001 99999
B 120 30
LXSL-20E 20 A 5 2.5 250 100 0.0001 99999
B 200 50
LXSL-25E 25 A 7 3.5 350 140 0.0001 99999
B 280 70

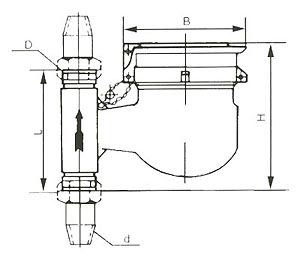

Dimensions And Weight:
Meter Size

mm

Length

Width

Height

Connecting thread

Weight

kg

mm D d
15 100 99 120 G 3/4B R1/2 1.6
20 100 99 120 G 1 B R3/4 1.8
25 110 104 130 G 1-1/4 B R1 2.4

Head Loss Curve:


Flow Error Curve:
