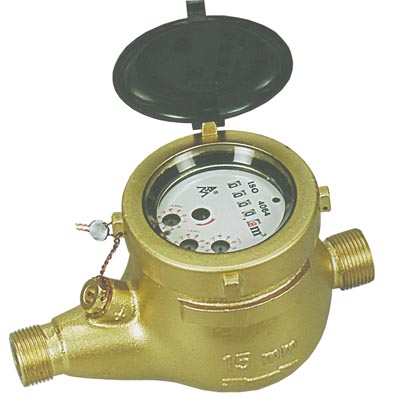

LXSC-15E~20E  Rotary Vane Wheel Multi-jet Mechanical-drive

   Dry-dial Cold Water Meter





Application:
   This range of water meter is used to measure the total quantity of cold potable water which
   consumed in household or a resident unit, passing through the pipeline.

Feature:
   Multi-jet, Dry-dial, mechanical direct drive, overcoming problems caused by magnet as normal
   magnet-drive dry-dial water meter. Selected high quality materials for steady & reliable characteristic,
   Advanced structure. Vacuum sealed register ensures the dial kept free from fog and keep the reading
   clear in a long term service. Measuring accuracy conform to ISO 4064 Class B Standard.


Working Condition:
   Water temperature:≤50℃
   Working pressure:≤1MPa

Compliance With Standard:

ISO 4064 Class B

Indicating Error:
   a) In the lower zone from Qmin inclusive up to but excluding Qt is ?%
 b) In the upper zone from Qt inclusive up to and including Qs is ?%

Main Technical Data:
Type Meter Size

(mm)

Class qs
Max
Flow
qp
Nominal
Flow
qt
Transitional
Flow
qmin
Min
Flow
Min Reading  Max. Reading
m3/h l/h m3
LXSC-15E 15 A 3 1.5 150 60 0.0001 9999
B 120 30
LXSC-20E 20 A 5 2.5 250 100 0.0001 9999
B 200 50

Dimensions And Weight:
Meter Size

mm

Length

Width

Height

Connecting thread

Weight

kg

mm D d
15 170 98 109 G 3/4B R1/2 1.65
20 190 98 112 G 1 B R3/4 2

Head Loss Curve:


Flow Error Curve:
