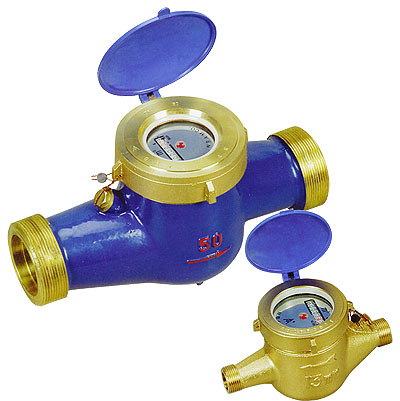

LXSC-13~50  Rotary Vane Wheel Multi-jet Magnet-drive Dry-dial

   Cold Water Meter





Application:
   This range of water meter is used to measure the total quantity of cold potable water which
   consumed in household or a resident unit, passing through the pipeline.

Feature:
   Multi-jet, Dry-dial, Magnetic drive. Selected high quality materials for steady & reliable characteristic.

Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term
   service. Measuring accuracy conform to ISO 4064 Class B Standard. Universal use. Easy for
   interchange & maintenance.


Working Condition:
   Water temperature:≤40℃
   Working pressure:≤1MPa

Compliance With Standard:

ISO 4064 Class B

Indicating Error:
   a) In the lower zone from Qmin inclusive up to but excluding Qt is 5%
 b) In the upper zone from Qt inclusive up to and including Qs is 2%

Main Technical Data:
Type Meter Size

(mm)

Class qs
Max
Flow
qp
Nominal
Flow
qt
Transitional
Flow
qmin
Min
Flow
Min Reading  Max. Reading
m3/h l/h m3
LXSC-13 13 A 3 1.5 150 60 0.001 9999
B 120 30
LXSC-20 20 A 5 2.5 250 100 0.001 9999
B 200 50
LXSC-25 25 A 7 3.5 350 140 0.001 9999
B 280 70
LXSC-40 40 A 20 10 1000 400 0.01 99999
B 800 200
LXSC-50 50 A 30 15 4500 1200 0.01 99999
B 3000 450

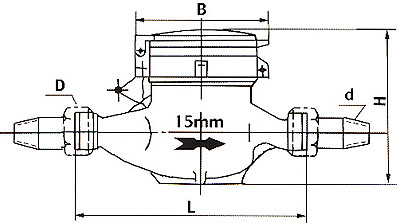

Dimensions And Weight:
Meter Size

mm

Length

Width

Height

Connecting thread

Weight

kg

mm D d
13 165 99 104 G 3/4B R1/2 1.35
20 190 99 107 G 1 B R3/4 1.45
25 225 99 112 G 1-1/4 B R1 1.9
40 245 125 145 G 2 B R1-1/2 4.4
50 300/280 125 150 G 2-1/2 B R2 8.4/8.1

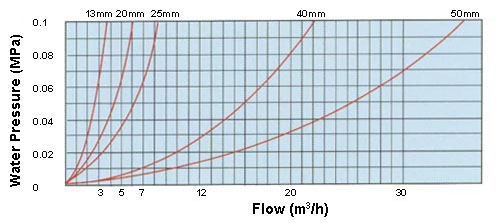

Head Loss Curve:






Flow Error Curve:
