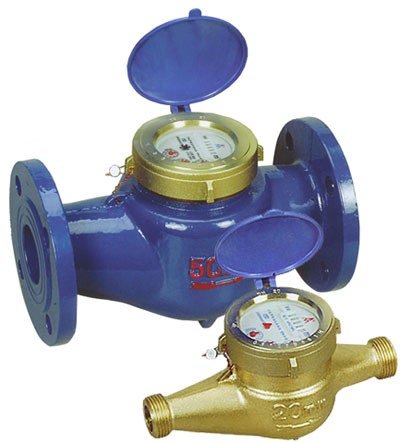

LXS-15E~50E  Rotary Vane Wheel Multi-jet Wet-Dial Cold

   Water Meter





Application:
   This range of water meter is used to measure the total quantity of cold potable water which
   consumed in household or a resident unit, passing through the pipeline.

Feature:
   Multi-jet, wet-dial. Selected high quality materials. Steady & reliable. Measuring accuracy conform
   to ISO 4064 Class B
.

Working Condition:
   Water temperature:≤40℃
   Working pressure:≤1MPa

Compliance With Standard:

ISO 4064 Class B

Indicating Error:
   a) In the lower zone from Qmin inclusive up to but excluding Qt is ?%
 b) In the upper zone from Qt inclusive up to and including Qs is ?%

Main Technical Data:
Type Meter Size

(mm)

Class qs
Max
Flow
qp
Nominal
Flow
qt
Transitional
Flow
qmin
Min
Flow
Min Reading  Max. Reading
m3/h l/h m3
LXS-15E 15 A 3 1.5 150 60 0.0001 99999
B 120 30
LXS-20E 20 A 5 2.5 250 100 0.0001 99999
B
