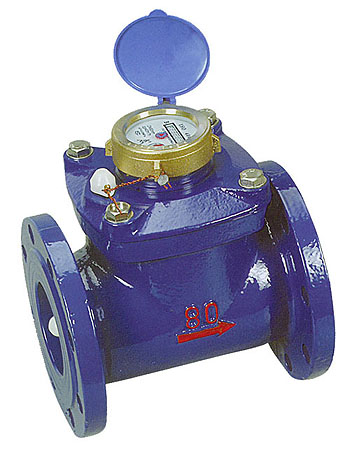

LXLC-50~300  Horizontal Woltman Type Detachable Magnet-drive
    Dry-Dial Cold Water Meter





Application:
   This range of water meter is used to measure the total quantity of cold potable water passing
   through the pipeline.

Feature:

Dry-dial, Magnet drive, Vacuum sealed register ensures the dial kept free from fog and keep the
   reading clear in a long term service. Selected high quality materials for steady & reliable
   characteristic. Measuring accuracy conform to ISO 4064 Class A. Low head loss. Register for
   universal use within this range detachable without removing the meter from the pipeline for a easy
   maintenance and replacement
.

Working Condition:
   Water temperature:≤40℃
   Working pressure:≤1MPa

Compliance With Standard:

ISO 4064 Class B

Indicating Error:
   a) In the lower zone from Qmin inclusive up to but excluding Qt is 5%
 b) In the upper zone from Qt inclusive up to and including Qs is 2%

Main Technical Data:
Type Meter Size

(mm)

Class qs
Max
Flow
qp
Nominal
Flow
qt
Transitional
Flow
qmin
Min
Flow
Min Reading  Max. Reading
m3/h m3
LXLC-50 50 A 30 15 4.5 1.2 0.01 999999
B 3 0.45
LXLC-65 65 A 50 25 7.5 2 0.01 999999
B 5 0.75
LXLC-80 80 A 80 40 12 3.2 0.01 999999
B 8 1.2
LXLC-100 100 A 120 60 18 4.8 0.01 999999
B 12 1.8
LXLC-125 125 A 200 100 30 8 0.01 999999
B 20 3
LXLC-150 150 A 300 150 45 12 0.1 9999999
B 30 4.5
LXLC-200 200 A 500 250 75 20 0.1 9999999
B 50 7.5
LXLC-250 250 A 800 400 120 32 0.1 9999999
B 80 12
LXLC-300 300 A 1200 600 180 48 1 9999999
B 120 18

Dimensions And Weight:
Meter Size

mm

Length(L)

Width(B)

Height(H)

Connecting flange

Weight

kg

Outer Dia Bolt circle dia Connecting bolt dia
mm D (mm) D1(mm) pcs
50 200 175 250 165 125 4-M16 12
65 200 185 255 185 145 4-M16 13
80 225 200 265 195 160 8-M16 15
100 250 220 275 215 180 8-M16 19
125 250 245 285 245 210 8-M16 22
150 300 285 310 285 240 8-M20 28
200 350 345 370 340 295 8-M20 41
250 400 395 420 395 350 12-M20 80
300 450 490 660 445 400 12-M20 115



Head Loss Curve:






Flow Error Curve:
