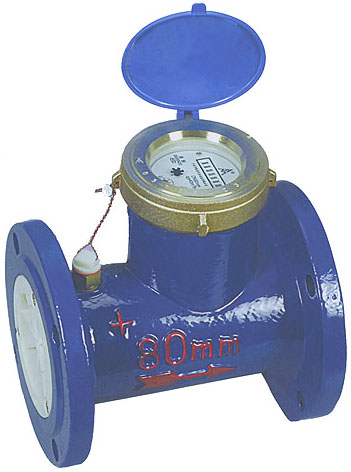

LXL-80E~200E  Horizontal Woltman Type Wet-Dial Cold
    Water  Meter





Application:
   This range of water meter is used to measure the total quantity of cold water passing through the
    pipeline.

Feature:
   Wet-dial, woltman type
. Selected high quality materials for steady & reliable characteristic.
   Measuring accuracy conform to ISO 4064 Class A. Low head loss. Register for universal use.
   Great flow capacity, low pressure loss, light weight, small volume, compact structure, easy
   operation and maintenance.



Working Condition:
   Water temperature:≤40℃
   Working pressure:≤1MPa

Compliance With Standard:

ISO 4064

Indicating Error:
   a) In the lower zone from Qmin inclusive up to but excluding Qt is ?%
 b) In the upper zone from Qt inclusive up to and including Qs is ?%

Main Technical Data:
Type Meter Size

(mm)

Class qs
Max
Flow
qp
Nominal
Flow
qt
Transitional
Flow
qmin
Min
Flow
Min Reading  Max. Reading
m3/h m3
LXL-80E 80 A 80 40 12 3.2 0.01 999999
B 8 1.2
LXL-100E 100 A 120 60 18 4.8 0.01 999999
B 12 1.8
LXL-150E 150 A 300 150 45 12 0.1 9999999
B 30 4.5
LXL-200E 200 A 500 250 75 20 0.1 9999999
B 50 7.5

Dimensions And Weight:
Meter Size

mm

Length(L)

Height(H)

Connecting flange

Weight

kg

Outer Dia Bolt circle dia Connecting bolt dia
mm D (mm) D1(mm) pcs
80 225/250 245 190 160 4-M16 13.5/14
100 250 260 210 180 8-M16 15
150 300 310 280 240 8-M20 24
200 350 362 335 295 8-M20 36



Flow Error Curve:
